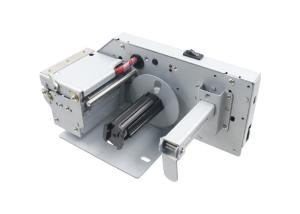

Large Paper USB Kiosk Printer Module QR CODE 58mm Support Multiple Interfaces

Brand Name : MASUNG

Model Number : MS-LP212A

Certification : CE/ROHS/3C

Place of Origin : CHIAN

MOQ : 1

Price : negotiable

Supply Ability : 2000 set per month

Packaging Details : carton and foam materials

Model : MS-LP212A

Total dots per line : 448 dots

Printing width : 56mm(max)

Platen open : Mechanical switch

Paper gap : Reflective infrared light sensor

Power standby : About 17mA

Printing method : Dot line thermal printing

Paper roll diameter : 100 mm (max)

Communication interfaces : USB ,RS232

Contact Now

QR CODE 58mm USB Kiosk Printer Module large paper support multiple interfaces

Features for Barcode Label Printer :

  • Features:

    High speed printing
    Automatically label peeing off mechanism
    Super paper roll re-winder
    Auto paper calibration system
    Wide range 35~60mm paper width
    Accurate buzzer and indicators alarming

    Specification:

    Model MS-LP212A
    Printing method Dot line thermal printing
    Total dots per line 448 dots
    Printing width 56mm(max)
    Thermal head temperature Thermal sensors
    Platen open Mechanical switch
    Paper gap Reflective infrared light sensor
    Cover open Mechanical photoelectric sensor
    Out of Paper detection Reflective infrared light sensor
    Working voltage 24±10%V/2A
    Power standby About 17mA
    Paper width 35~60mm
    Paper roll inner core ≥25mm
    Paper roll outer diameter 120mm(max)
    Abrasion resistance 100KM
    Communication interface RS232 & USB
    Ambient environment
    Work -10~50℃ , 20%~85%RH (40℃/85%RH)
    Storage -20~70℃ , 10%~90%RH(50℃/90%RH)

    Physical property
    Weight About 1.65kg
    Dimension 112*217.46*106.43

    Application:

    Weighing scale; monitor system; measurement device, barcode printers and so on.

Large Paper USB Kiosk Printer Module QR CODE 58mm Support Multiple Interfaces

Often answered
The smallest number of thermal printers
There is no minimum order quantity, there is an order for 1 unit and even the total value of the product is less than $100
Time of delivery for thermal printers
Each order is very different. The following is the usual delivery time (upon receipt of payment) for reference:
Sample :2 ~ 3 days
10 ~ 100 units: 5 ~ 7 working days
100 to 500, 10, 15 days
500 to 1000, 20 to 35 business days
More than 1000 sets, please confirm with our sales staff
The warranty
We have the highest level of trade guarantee to 100% guarantee your funds and delivery time. We guarantee our product
Normally, it would be about 12 plus a month, and some of the designated models would have had a 24-month warranty. For larger orders, we wish to provide some spare parts for quick local repair. After that, you can return the faulty parts for rework and analysis.
